SWITCH GEAR :

Purposes of Switchgears are the following…

ADDITIONAL FEATURES:

ISOLATORS:

Isolators are a kind of Switchgear Products which they are intended for switching purpose only.
This devices are used for isolating circuits and also as miniature main switch in residential as well as industrial circuitries.

MCB(Miniature Circuit Breaker):

ISOLATOR PRODUCT RANGES:

Applications of MCBs with Different Characteristics Curve:

RCCB(Residual Current Circuit Breaker):

RCCBs are the most important product in the range of switchgears. Which was intended to provide safety for human beings as well as appliances from electric shock and earth faults.

According to Number of Poles:

RCCB - Working:

Inside a RCCB, there is a core on which phase and neutral wires are wound in such a way that the magnetic fields developed by these coils cancels each other in normal condition. But if there is a earth leakage, the cancelling of magnetic fields will not happen. RCCB trips instantaneously on sensing this residual magnetic field.

MCB Product Ranges:

DB - PRODUCT RANGES:

RCCB Working while a human body touches a load with improper insulation:

SPN DISTRIBUTION BOARDS:

The term SPN stands for single phase and neutral. This is used where the circuit has got one single phase input and several single phase outputs.

TPN DISTRIBUTION BOARDS:

The term TPN stands for Three phase and Neutral. This is used where the circuit has got one Three phase input and several single/three phase outputs.

RCCB - Product Ranges:

SPN & TPN - PRODUCT RANGES:

MCOS (Miniature Change Over Switch):

Miniature change over switch is an another type of switching device in which, works like a DPDT (Double Pole Double Through) switch. We can connect two different supply sources and one load as output or vice versa.
e.g:-
We can connect loads with power line supply and generator or inverter and toggle between them by means of a knob. And also can be used to connect load to supply another position for load with ground which can ensure safety at the time of lightning.

PHASE SELECTOR DB’S:

Phase selectors are a type of TPN DB with provision to select (with the help rotary switches) desired phase from a three phase supply. The input will be a 3ph supply whereas the out puts are single phase.

PHASE SELECTOR - PRODUCT RANGES:

MCOS - PRODUCT RANGES

MCB ENCLOSURES

As the name implies it is just a metal or plasticcovering for MCB’s to prevent the operator from electric shock.

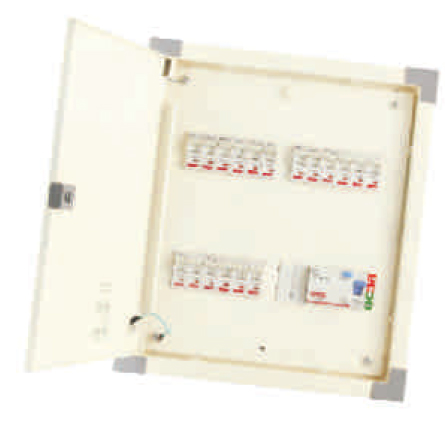

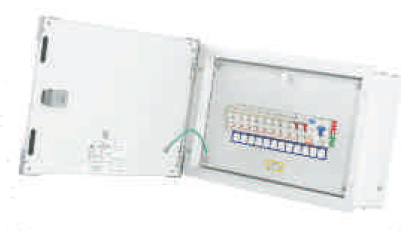

DISTRIBUTION BOARDS

Distribution boards are devices used to held 2 way 4 way 6 way switch gears securely, without electrical shock threats. It also have to provide easy installation and user friendly operation

PLUG & SOCKET

Plug and Socket DB’s are used to supply power & protection to the devices like ACs and Heavy Motors.
