Features

• High Speed Micro controller based design
• Precise and more accurate.
• Base plate mounting.
• Meets IS 14697/IS 15959/ Latest CBIP DLMS protocol
• I n built SMPS for low power consumption.
• Status Indication through LED’s Fabricated Box

TECHNICAL SPECIFICATIONS

• for three Phase with neutral
• No.of poles: Phase + Neutral
• Rated Current: Load EB Side 20A, 25A, 32A, 40A, 63A
• Rated Current: Load DG Side: 20A, 25A, 32A, 40A & 63A (Factory set)
• Time interval from EB to DG: After input stable in DG - after 3 Sec
• Time interval from DG to EB : Load will switch on after 3 Sec
• Time interval from DG to EB : Load will switch on after 3 Sec
• Surface mounting
• Enclosure : Fabricated Box
• Optional feature: Auto reset available.

Features

• High Speed Micro-controller based design
• Precise and more accurate
• Din rail mounting.
• In built SMPS for low power consumption
• Status Indication through LED’s
• Under voltage / over voltage cutoff facility.

TECHNICAL SPECIFICATIONS

• Suitable for Single Phase from 175 to 270V AC 50 Hz.
• No.of Poles : 1 Phase + Neutral
• Rated Current: Load DG Side: 1A to 20A (Factory Set)
• Time interval from EB to DG: After input stable in DG - after 2 Sec
• Time interval from DG to EB : Instantaneous
• Protection to change over : Break Neutral before breaking phase
• Protection under voltage : 150V AC
• Protection over voltage : 270V AC
• Enclosure: ABS plastic Mounting Din rail
• Dimension : 75 x 110 x 60 mm

Features

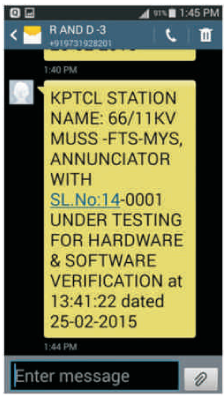

• GSM based advance technology
• Regular annunciation with message to the defined mobiles
• No.of windows: 8,12,16,20,24,32 windows
• Message for regular fault input on every annunciation window
• Clear message after input fault clears
• Messages to the selectable 5 mobilesnumbers
• Messages with substation / site name, panel description, window description, Annunciator Serial No., Date and Time
• Along with unit user friendly proprietary software will be given to enter Mobile No. and full details of station name, and window details.
